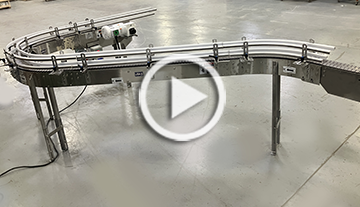

 Multi-Conveyor recently built a stainless-steel constructed TableTop® chain conveyor section, as a production bottling line reconfiguration project, for a popular household cleaning brands manufacturer.However, this system can be used for a large variety of bottled products in a multitude of diverse markets.
This general transport system was designed to be spliced into an existing production line as a retrofit to accommodate a new floor plan layout requiring both a 45 degree left hand curve intermediate section and a 90 degree right hand curve to drive end.
The wash-down rated conveyor employs 4.5” side-flexing brown high-performance TableTop® material assembled with stainless steel pins.
This fundamental conveyor segment facilitates four changeovers from variable bottles sizes ranging from 12 oz to 32 ounces, running between 120 to 160 bpm. (NOTE: bottles used in the video are for demonstration purposes only.)
 Adjustable double-high guide rails with ratchet handles easily expand or contract to gently guide the varying bottle diameters and heights.
The fact is, Multi-Conveyor builds reliability into each conveyor we make – standard or custom. We know your conveyors are the production line component expected to perform with 100% reliability. No matter how complicated or simplistic the conveyor system, we factor in maximum productivity.
See even more straightforward conveyor transport systems by visiting our website video gallery.
|
